Portable Explosion-Proof Searchlight

Portable Explosion-Proof Searchlight yog tsim los ua kom tau raws li qhov xav tau ntawm kev tswj dej nyab thiab kev ua haujlwm siab. Siv lub teeb pom kev zoo LED thiab cov qauv kev tawg-pov thawj, lub teeb ua haujlwm no muaj kev nyab xeeb tshwj xeeb thiab kev ua haujlwm ruaj khov nyob rau hauv qhov chaw nyuaj thiab muaj kev phom sij xws li nplaim taws, tawg, av noo, thiab plua plav.

Kev siv lub tuam txhab kev paub dhau los hauv cov cuab yeej tswj dej nyab thiab cov kev pabcuam tomqab muag tag, LED tawg-pov thawj lub teeb ua haujlwm tsis yog tsuas yog ib qho tseem ceeb ntawm cov cuab yeej siv rau kev tswj dej nyab thiab kev cawm thaum muaj xwm txheej ceev, tab sis kuj yog lub teeb pom kev zoo rau kev saib xyuas txhua hnub thiab cov lus teb thaum muaj xwm txheej ceev hauv cov xwm txheej tshwj xeeb xws li cov nroj tsuag tshuaj, mines, thiab cov chaw nres nkoj, ua kom muaj kev nyab xeeb rau sab nraum zoov.

Khoom nta

● High brightness: Luminous flux tshaj 4000lm; central illuminance ntawm 6 meters (spotlight hom) yog tshaj 1000lx; nruab nrab illuminance ntawm 3 meters (floodlight hom) yog siab tshaj 200lx.

● Lub teeb yuag: tag nrho qhov hnyav tsuas yog 6kg, txhawb nqa nqa tes thiab lub xub pwg rov qab kom yooj yim txav tau yooj yim.

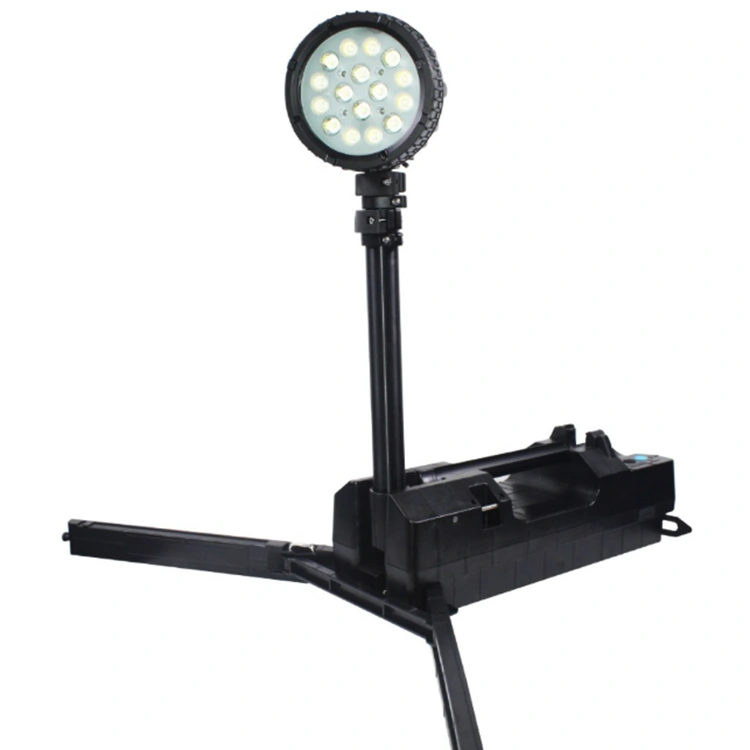

●Multi-functional siv: Lub lifting pas nrig tuaj yeem txuas ntxiv mus txog 1.2 meters rau kev teeb pom kev ruaj khov, lossis folded siv los ua lub teeb pom kev.

● Ntev ntev: Lub sij hawm teeb pom kev tsis tu ncua ntev tshaj 10 teev nyob rau hauv high-brightness hom thiab 16 teev nyob rau hauv tus qauv hom, ua tau raws li qhov xav tau ntawm kev ua haujlwm ntev ntev.

●High-energy nco-dawb lithium roj teeb: Txhawb random them thiab tso tawm, featuring ib puag ncig tus phooj ywg, muaj peev xwm loj, muaj kev nyab xeeb siab thiab ua haujlwm ntev.

● Ntau hom teeb pom kev zoo: Nruab nrog lub teeb pom kev zoo, teeb pom kev nyab xeeb, teeb pom kev zoo ultra-ci, nrog rau lub teeb liab thiab daj ceeb toom kom haum rau cov teeb pom kev zoo ntawm cov xwm txheej sib txawv.

●Premium explosion-proof performance: Certified with explosion-proof grade Ex de ib mb IIC T6 Gb, ua kom muaj kev nyab xeeb hauv ntau qhov chaw tawg thiab tawg.

● Cov qib kev tiv thaiv zoo tshaj: Tag nrho IP66 tiv thaiv kev ntsuas, tiv taus 1-meter poob cuam tshuam, thiab muaj peev xwm ua haujlwm ruaj khov nyob rau hauv nag, daus thiab huab cua hnyav.

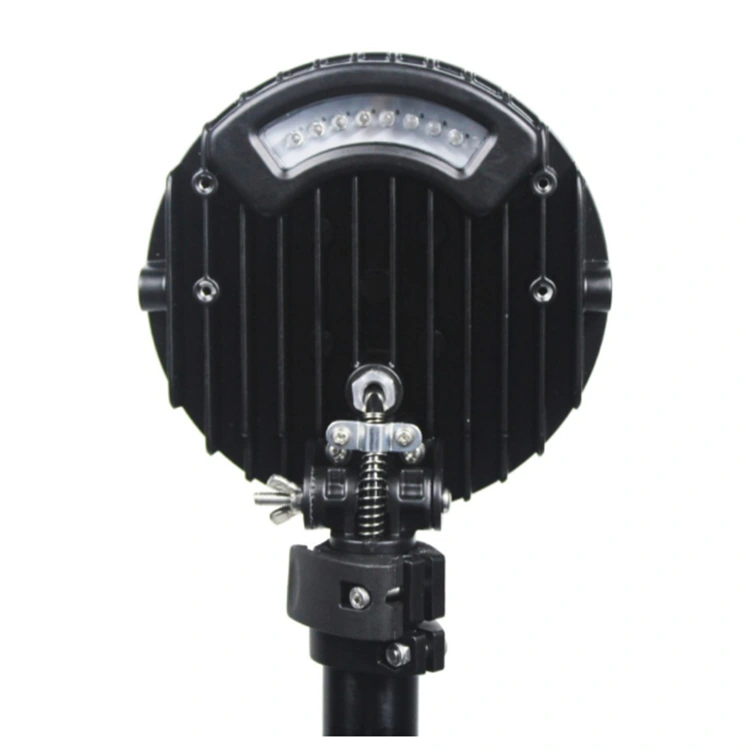

● Kev hloov kho yooj yim: Lub taub hau lub teeb txhawb 360 ° kab rov tav tig thiab 135 ° ntsug lub kaum sab xis hloov kho, pub dawb hloov ntawm lub teeb pom kev zoo.

Technical Parameters

Rated Peev Xwm: 10Ah

Kev ntsuas hluav taws xob: DC 22.2V

LED Lub Zog: 50W

Lub neej ua haujlwm nruab nrab: 100,000h

Xim kub: 5000-6000K

Central Illuminance (ntawm 6m): ＞ 1000lx

Lub Sij Hawm Nruam Tawm: Lub teeb siab ≥10h / Lub teeb ua haujlwm ≥16h

Spot & Flood Light Simultaneous On: Lub teeb siab ≥4h / Lub teeb ua haujlwm 8h

Them sij hawm: ≤6h

Lub Teeb Xim Xim: Liab / Xiav

Explosion-proof Mark: Ex db eb ib mb IIC T6 Gb; Ex ib tb IC T80°C Db

Zuag qhia tag nrho Dimensions:

Retracted: 500 × 150 × 180mm

Ntxiv: 500 × 150 × 1280mm

Kev tiv thaiv Ingress: IP66

Khoom hnyav: 6kg

Siv tau Scope

Qhov Portable Explosion-Proof Searchlight no tsuas yog tsim rau teeb pom kev xwm txheej ceev hauv kev cawm dim, kev tsim kho me me, kev saib xyuas thiab kev ua haujlwm kub ntxhov thoob plaws ntau qhov kev lag luam tseem ceeb thiab cov xwm txheej txaus ntshai.

Siv dav hauv:

Kev tswj dej nyab thiab kev cawm thaum muaj xwm txheej ceev

Kev kho tsheb ciav hlau kev sib tsoo thiab qhov xwm txheej ceev

Fais fab kev saib xyuas thiab kho substation

Kev tua hluav taws thiab tub ceev xwm ua haujlwm hmo ntuj

Oilfield, chemical cog thiab chaw nres tsheb roj kev nyab xeeb ua haujlwm

Kev saib xyuas kev lag luam hauv thaj chaw muaj kev phom sij

Muab kev txhawb nqa teeb pom kev zoo rau qhov chaw muaj kev pheej hmoo siab thiab tsis pom kev.
