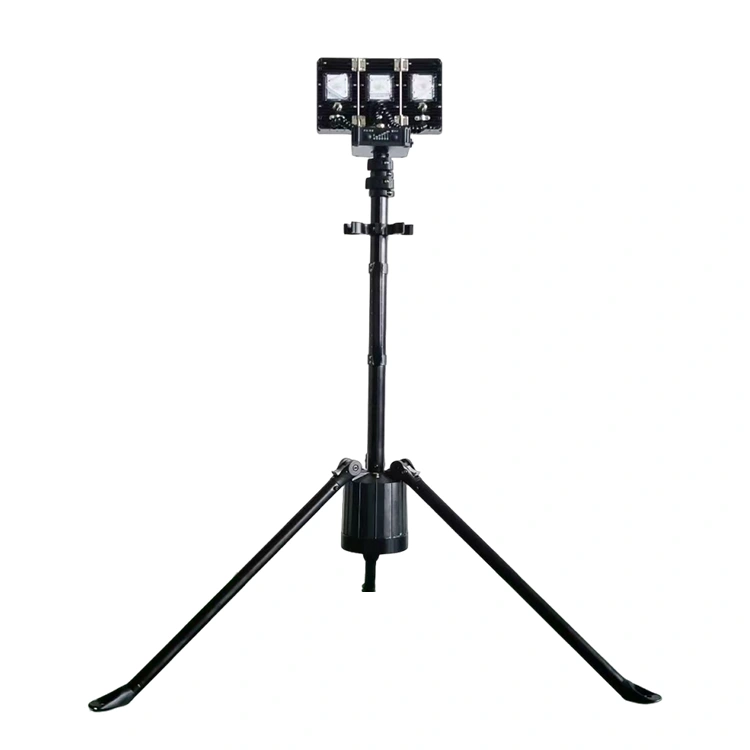

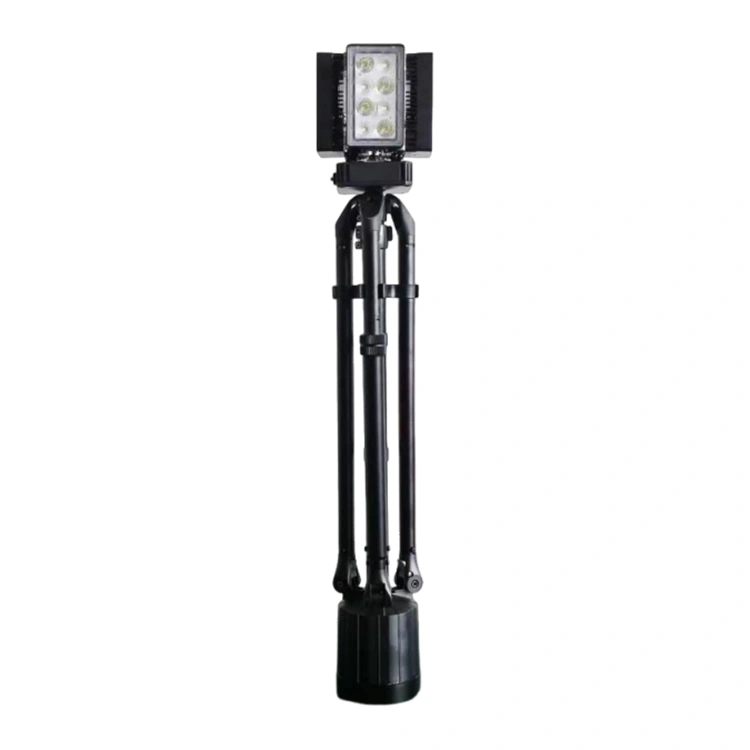

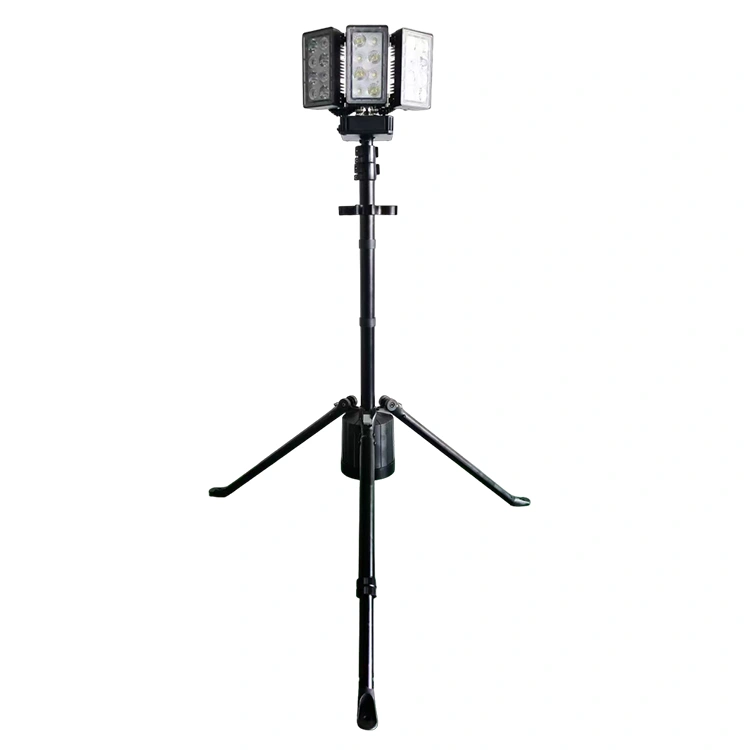

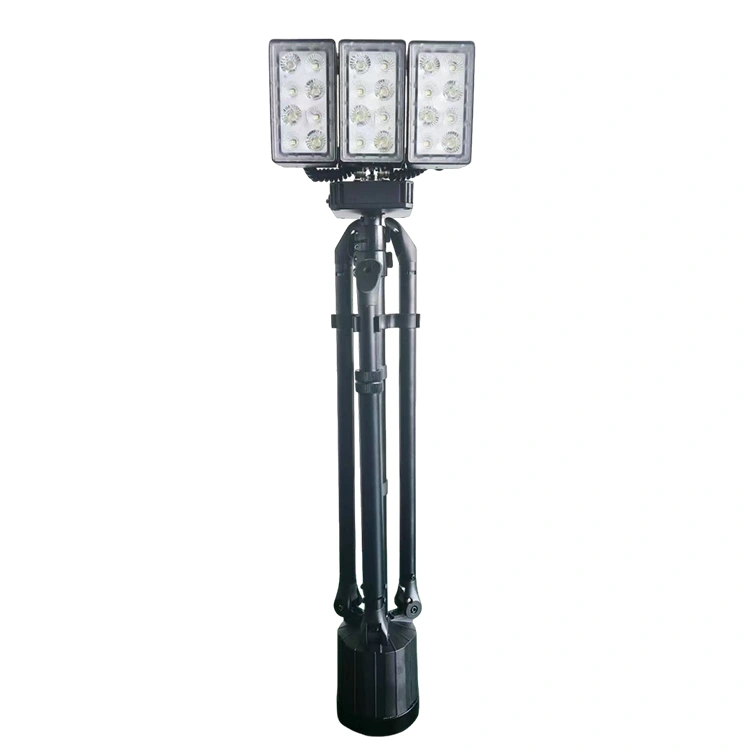

Explosion-Proof Panoramic Mobile Lighting System

Changshu Jianghe Flood Prevention Products CO., Ltd. tau ntev tau koom nrog cov teeb pom kev kub ntxhov ceev. Nws tus kheej-tsim tawg-pov thawj panoramic mobile teeb pom kev zoo teeb pom kev zoo tag nrho cov teeb pom kev zoo thiab hloov tau yooj yim txav mus los, zoo kawg nkaus ua tau raws li qhov xav tau ntawm kev ua haujlwm txaus ntshai hauv ntau qhov xwm txheej. Txais yuav cov qauv tawg-pov thawj sib xyaw, nws mus txog qib tawg-pov thawj ntawm Ex db eb ib mb IIC T6 Gb. Nrog rau IP66 kev tiv thaiv siab tsim, nws tiv taus nag hnyav, tee thiab lwm yam kev ua haujlwm hnyav, ua kom ntseeg tau thiab muaj kev nyab xeeb ua haujlwm hauv qhov chaw tawg thiab tawg.

Siv dav hauv kev tswj dej nyab thiab kev cawm, hluav taws kub ceev, kev ruaj ntseg rau pej xeem lub luag haujlwm thiab kev saib xyuas kev lag luam, nws xa cov teeb pom kev ruaj khov thiab muaj txiaj ntsig zoo rau kev soj ntsuam dej ntws, kev tsim kho hauv cov chaw muaj kev pheej hmoo siab thiab kev sib tsoo ntawm qhov chaw, txhim kho kev nyab xeeb thiab ua haujlwm ntawm kev ua haujlwm pem hauv ntej.

Technical Parameters

Kev ntsuas hluav taws xob: DC 22.2V

Rated Roj Teeb Muaj Peev Xwm: 5 × 3Ah

Rated zog: 120W / 150W

Maximum Initial Illuminance ntawm 10 Meters:

Lub teeb siab: 750lx / Nruab nrab lub teeb: 450lx / Ua haujlwm lub teeb: 300lx

Teeb pom kev zoo: Floodlight + tsom teeb

Warning Light Xim: Yellow

Lub Sij Hawm Ntawm Kev Dej Ntxim Saib Ntxim Ua thiab Teeb Pom Kev Pom Zoo:

Lub teeb siab: 5h / Nruab nrab teeb: 10h / Ua haujlwm teeb: 14h

Roj Teeb Kev Pabcuam Lub Neej: ≥ 1000 cycles

Them sij hawm: ≤ 6h

Zuag qhia tag nrho Dimensions:

Lifting pas nrig: 201 × 872 (± 50) mm

Lifting pas nrig: 820 × 2253 (± 50) mm

Qhov hnyav: 8 ± 0.5 kg

Ua haujlwm kub: -20 ℃ ~ 40 ℃

Khoom nta

1. Lub Explosion-Proof Panoramic Mobile Lighting System txais cov qauv kev tawg-pov thawj sib xyaw ua ke nrog kev nyab xeeb ntawm sab hauv, encapsulation thiab muaj kev nyab xeeb ntxiv. Nws tuaj yeem siv tau zoo nyob rau thaj tsam 1 thiab Zone 2 cov nplaim hluav taws kub thiab cov pa roj tawg. Nrog rau kev tiv thaiv tag nrho ntawm IP66, nws txhawb kev ua haujlwm ntev nyob rau hauv qhov hnyav sab nraum zoov.

2. Lub teeb lub taub hau yog nruab nrog high-efficiency LED teeb qhov chaw, featuring lub zog txuag, ib puag ncig tus phooj ywg, siab brightness thiab ntev kev pab cuam lub neej. Lub zog teeb pom kev zoo ntawm 150W ua tau raws li qhov xav tau ntawm thaj chaw dav dav ntawm ntau qhov chaw tsim kho.

3. Tsim los nrog peb lub teeb lub taub hau, irradiation kev taw qhia thiab lub kaum sab xis tuaj yeem hloov kho kab rov tav thiab ntsug kom paub txog 360 ° omnidirectional ib puag ncig teeb pom kev zoo thiab ib qho kev taw qhia teeb pom kev zoo. Qhov siab ntawm lub teeb taub hau yog kho tau los ntawm 3-section telescopic pas nrig, nrog qhov siab tshaj plaws nqa qhov siab ntawm 2.2 meters, yoog raws li kev xav tau ntawm ntau lub sijhawm.

4. Ua nrog lub peev xwm muaj peev xwm siab-zog lithium roj teeb pob uas muaj tus nqi qis tus kheej tawm. Tus nqi them tag nrho txhawb nqa txog li 5 teev ntawm kev ua haujlwm tas mus li nrog dej nyab thiab tsom teeb rau tib lub sijhawm. Built-in overcharge, overdischarge thiab luv-circuit tiv thaiv kom muaj kev nyab xeeb thiab ruaj khov.

5. Lub teeb ceeb toom taw qhia tau teeb tsa rau sab nraub qaum ntawm lub taub hau teeb, uas tuaj yeem qhib lossis tawm ntawm nws tus kheej. Thaum tsaus ntuj nyob rau hauv huab cua ntshiab, qhov pom kev deb ntawm lub teeb ceeb toom mus txog 1,500 meters.

6. Nruab nrog daim duab peb sab ob txhais ceg, lub luminaire muab kev ruaj ntseg zoo heev. Nws yog ib qho yooj yim rau kev khiav lag luam thiab yooj yim txav, zoo tagnrho rau kev ua haujlwm scenarios uas yuav tsum tau tsiv mus nyob.

7. Multi-mode teeb pom kev zoo: Cov nyees khawm lub cev txhawb kev ci ntsa iab, ceeb toom lub teeb hloov thiab 5-theem segmented fais fab zaub. Kev sib txuas ntawm Bluetooth ntawm lub xov tooj ntawm tes APP ua rau ib qho tseem ceeb ntawm kev tswj lub teeb thiab ceeb toom teeb, tsis muaj teeb meem dimming, theem roj teeb ntawm lub sijhawm thiab kev kuaj xyuas tus nqi, nrog rau cov chaw taws teeb tswj qhov deb ntawm ntau dua 50 meters, txhim kho daim ntawv thov kom yooj yim.

8. Compact thiab lub teeb yuag, nws txhawb nqa ntau txoj hauv kev xws li tuav tes thiab lub xub pwg nyom kom yooj yim rau kev thauj mus los.

Vim li cas thiaj xaiv peb?

Qhov Explosion-Proof Panoramic Mobile Lighting System boasts ntau yam ntawm cov xwm txheej siv tau thiab ua tau raws li qhov xav tau ntawm lub teeb pom kev zoo thoob plaws ntau qhov chaw. Nws xa cov teeb pom kev zoo rau pej xeem kev ruaj ntseg xws li chaw saib xyuas lub luag haujlwm ntawm lub xov tooj ntawm tes thiab kev tshuaj xyuas hmo ntuj los ntawm cov tsheb saib xyuas, pab cov tub ceev xwm ua haujlwm soj ntsuam kom zoo. Nws kuj tseem ua haujlwm tseem ceeb hauv cov khoom siv teeb pom kev zoo rau kev kub ntxhov thiab kev tua hluav taws, ua kom pom kev ua haujlwm tag nrho ntawm qhov chaw raug xwm txheej thiab cov xwm txheej ntuj tsim kev puas tsuaj, txhawb kev pov tseg sai thiab kev tiv thaiv kev nyab xeeb rau cov neeg cawm siav.

Lub caij no, nws zoo kawg nkaus txaus siab rau cov teeb pom kev zoo rau kev tshawb nrhiav kev sib tsoo tsheb, kev cawm ntawm qhov chaw thiab chaw nres tsheb ciav hlau ib ntus, ua kom muaj kev ua haujlwm raug raws li txoj kev nyuaj. Tsis tas li ntawd, nws yog dav siv nyob rau hauv kev pab cawm thaum muaj xwm ceev rau roj av, tshuaj, railway, hluav taws xob daim phiaj thiab lwm yam lag luam, raws li zoo raws li loj-chaw teeb pom kev zoo mobile teeb pom kev zoo nyob rau hauv tawg-pov thawj qhov chaw thiab cov chaw tsim kho. Nrog kev ruaj khov thiab txhim khu kev qha, nws ua tau raws li qhov yuav tsum tau muaj teeb pom kev zoo nyob rau hauv ntau qhov chaw muaj kev pheej hmoo siab thiab nyuaj, ua kom ntseeg tau tias kev ua haujlwm zoo thiab nyab xeeb ntawm qhov chaw.
