QZ Series Self-priming Diesel Cav Dej twj tso kua mis

Kev kub ntxhov dej nyab feem ntau tshwm sim hauv qhov chaw uas hluav taws xob tsis muaj hluav taws xob, tsis ruaj khov, lossis cuam tshuam tag nrho. Cov twj siv hluav taws xob niaj hnub tuaj yeem siv tsis tau thaum lub sijhawm hluav taws xob hluav taws xob, thaum ntau lub twj tso kua mis txheem yuav tsum tau siv cov dej ntim dej ua ntej pib, ua rau muaj kev ncua sij hawm tseem ceeb.

QZ Series Self-priming Diesel Cav Dej Pump Unit yog tsim tshwj xeeb los daws cov teeb meem no.

Cov ntawv thov ib txwm muaj xws li:

• Kev khiav dej num thaum muaj xwm txheej ceev tom qab los nag hnyav

• Kev tshem tawm cov dej hauv nroog

• Hauv qab daus thiab chaw nres tsheb hauv av dewatering

• Kev khiav dej num thaum muaj xwm ceev hauv nroog

• Hloov dej thiab kwj dej

• Kev tsim kho qhov chaw dewatering

• Agricultural irrigation thiab dej

• Muaj kev hloov dej khib nyiab

Nws tus kheej-priming tsim tshem tawm qhov xav tau ntawm kev ntim khoom ua ntej, tso cai rau cov neeg ua haujlwm siv lub tsev sai sai thaum txhua feeb tseem ceeb.

Tus kheej-priming Technology ua haujlwm li cas?

Tsis zoo li cov twj tso kua mis centrifugal uas yuav tsum tau siv cov dej ntim dej ua ntej ua haujlwm, QZ Series siv lub twj tso kua mis tus kheej muaj peev xwm tuaj yeem tshem tawm huab cua los ntawm cov yeeb nkab nqus thiab tsim lub tshuab nqus tsev.

Qhov no tso cai rau lub twj tso kua mis sai sai nqus dej rau hauv lub twj tso kua mis chamber thiab pib ua haujlwm yam tsis muaj kev pab cuam sab nraud.

Cov txiaj ntsig tseem ceeb suav nrog:

• Kev xa tawm sai dua

• Txo cov neeg ua haujlwm ua haujlwm

• Txhim khu kev rov pib dua tom qab kaw

• Txhim khu kev ua tau zoo thaum lub sij hawm ua dej nyab

Qhov kev tsim no muaj txiaj ntsig tshwj xeeb hauv cov dej ntws thaum muaj xwm txheej ceev uas qhov kev ua kom sai yog qhov tseem ceeb.

Specifications

· Series: QZ Series

· Inlet / Outlet Diameter: 150 hli

· Max. Tus nqi ntws: 450 m³ / h

· Max. Loj: 25 m

· Ceev: 1500 rpm

· Khoom tuav: 76 mm

Daim ntawv thov Case

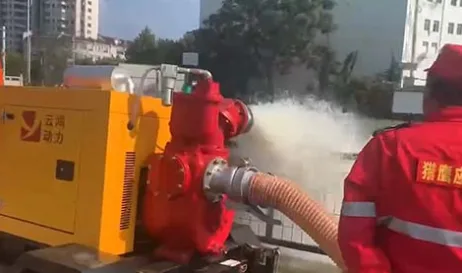

Lub Nroog Flood Drainage Project

Qhov chaw:Jiangsu xeev

Kev sib tw:Cov dej nag hnyav ua rau cov dej sib sau ua ke loj heev ntawm txoj kev hauv nroog.

Kev daws:Ob QZ Series Self-priming Diesel Pump Units tau xa mus rau cov dej thaum muaj xwm ceev.

Qhov tshwm sim:Txoj kev tsheb tau rov qab los nyob rau hauv ob peb teev thiab cov twj txuas txuas ntxiv tau khaws cia thoob plaws hauv kev ua haujlwm.

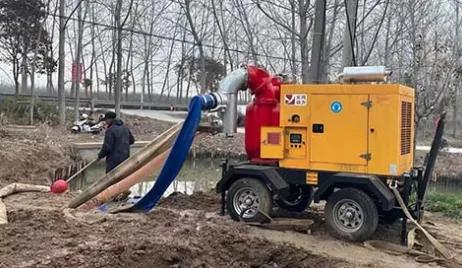

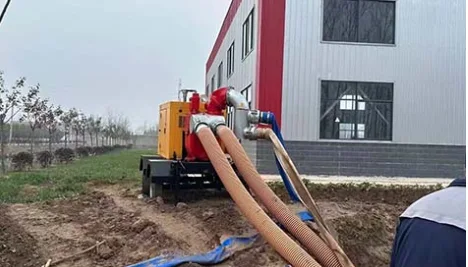

Kev tsim kho qhov chaw Dewatering

Qhov chaw:Eastern Tuam Tshoj

Kev sib tw:Cov dej hauv av tsub kom qeeb kev tsim kho kev ua haujlwm.

Kev daws:QZ Series Pump Unit muab cov dej tsis tu ncua thaum lub sijhawm ua haujlwm khawb.

Qhov tshwm sim:Txhim kho kev tsim kho efficiency thiab txo downtime.

Vim li cas thiaj xaiv Peb QZ Series Self-priming Diesel Cav Dej Pump Unit?

Tshwj xeeb hauv kev tswj dej nyab txij li xyoo 2016

Dedicated tsum ntawm kev tswj dej nyab, kev cawm thaum muaj xwm txheej ceev thiab cov khoom siv dej.

Ua kom tiav Flood Emergency Product System

Los ntawm cov dej nyab thiab cov hnab xuab zeb mus rau cov twj siv hluav taws xob, cov tshuab hluav taws xob thiab cov cuab yeej cawm siav.

Kev Paub Txog Tsoom Fwv Txoj Haujlwm

Koom nrog hauv kev tswj xyuas cov khoom siv dej nyab rau cov chaw tswj xyuas xwm txheej ceev, tub ceev xwm kev txuag dej thiab cov koom haum hauv nroog.

Certified Quality Assurance

ISO 9001, ISO 14001, ISO 45001 thiab tsib lub hnub qub Kev Pabcuam Tomqab Muag Khoom.

Emergency Stock & Fast Delivery

Dedicated inventory reserve system ua kom muaj kev xa tawm sai sai thaum lub caij dej nyab.

Kev cob qhia kev cob qhia & Kev Pabcuam Thaum Muaj Xwm Ceev

Kev cob qhia kev ua haujlwm tshaj lij, kev cob qhia cov khoom siv thiab kev txhawb nqa thaum muaj xwm txheej ceev.

Cov lus nug nquag

Q1: Lub twj tso kua mis puas ua haujlwm yam tsis muaj hluav taws xob?

Yog lawm. Chav tsev yog powered los ntawm ib tug ywj siab diesel cav thiab tsis cia siab rau daim phiaj hluav taws xob.

Q2: Puas yog lub twj tso kua mis yuav tsum tau ntim dej ua ntej pib?

Tsis yog. Tus qauv self-priming tso cai rau kev ua haujlwm yam tsis muaj phau ntawv priming.

Q3: Lub twj tso kua mis puas tuaj yeem ua dej nkos?

Yog lawm. Lub twj tso kua mis tuaj yeem hla cov khib nyiab mus txog 76 mm inch.

Q4: Puas muaj kev hloov kho?

Yog lawm. Flow rate, engine configuration thiab trailer xaiv tau customized.

Q5: Dab tsi kev lag luam feem ntau siv lub twj tso kua mis no?

Kev khiav dej num hauv nroog, kev tswj dej nyab, kev tsim kho dewatering, kev ua liaj ua teb, kev hloov dej khib nyiab thiab kev ua haujlwm thaum muaj xwm txheej ceev.
