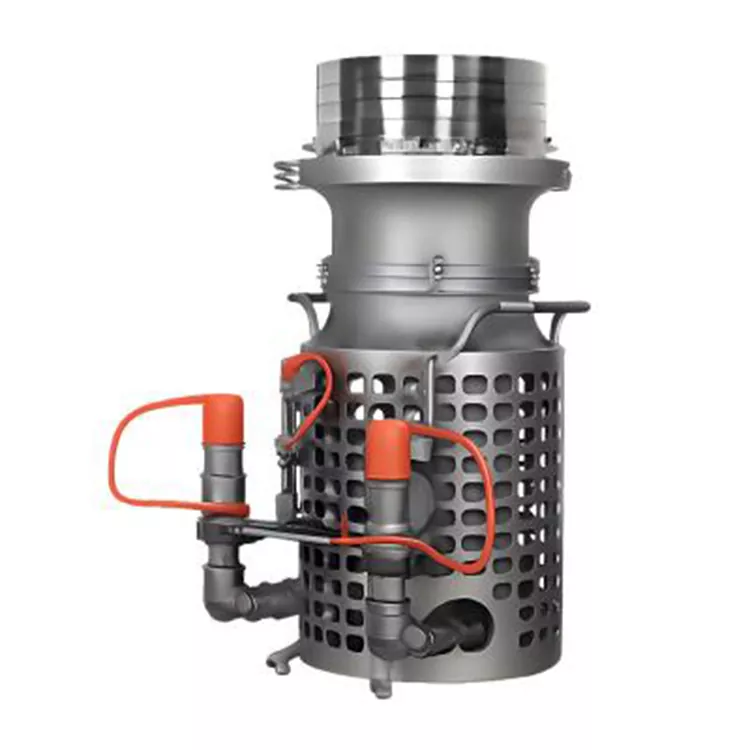

Hydraulic Axial Flow Twj

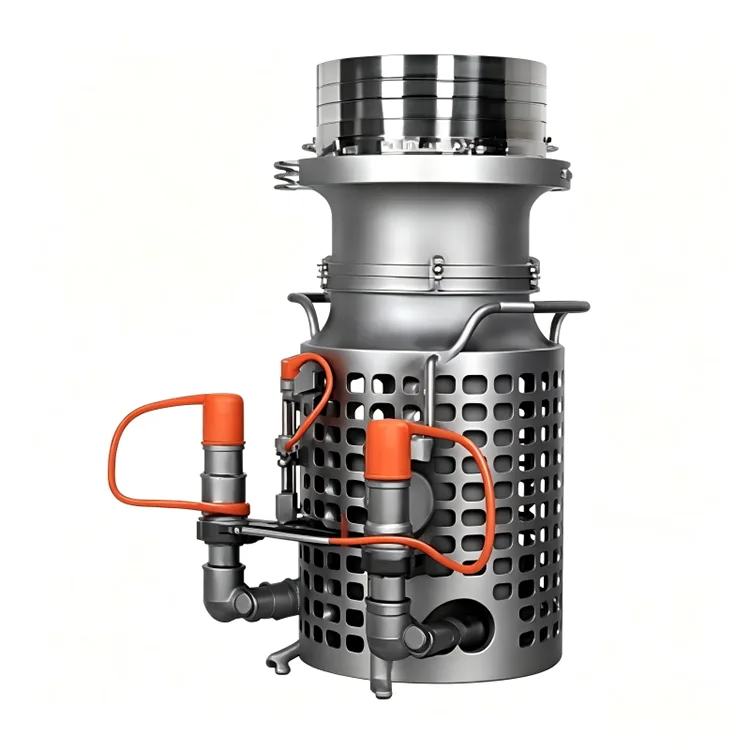

Hydraulic Axial Flow Pump rau Hauv Nroog Waterlogging Emergency & Flood Control - 500m³ / h High-Volume Drainage

Cov yam ntxwv tseem ceeb thiab qhov zoo

• Muaj peev xwm ntws mus txog 500m³ / h
• Tsawg lub taub hau tsim haum rau cov dej ntiav
• Hydraulic-tsav system rau kev siv mobile thaum muaj xwm ceev
• Kev sib txuas ceev nrog hydraulic zog units
• Compact qauv rau kev xa tawm
• Hnav-resistant tsim rau kev ua haujlwm ntev
• Haum rau hnyav thiab complex ib puag ncig

Technical Specifications

● Muaj peev xwm txaus siab: tshaj 500 m³ / h

● Lub taub hau siab tshaj plaws: txog li 32 m, ua kom cov lus teb ceev ceev hauv ntau qhov xwm txheej

● Hydraulic flow range: 40–100 Lpm

● Qhov hluav taws xob txoj kab uas hla: DN200

● Muaj peev xwm dhau ntawm cov khoom siv mus txog 30 hli, muaj peev xwm dhau zoo heev

Xaiv Phau Ntawv Qhia

Rau hauv nroog waterlogging nrog dej tob <2m thiab loj dej nyab cheeb tsam → xaiv peb 500m³ / h qauv rau sai drawdown

Rau dej dewatering nrog nqa qhov siab> 15m → peb pom zoo ua ke nrog lub zog siab dua hydraulic zog chav tsev (nrog rau peb cov engineers rau kev sib piv)

Rau qhov chaw tsim kho dewatering nrog cov khib nyiab-laden dej → paub meej tias cov khib nyiab hla dhau (≤30mm) ua tau raws li koj qhov chaw nyob

Daim ntawv thov

Urban flood control & waterlogging thaum muaj xwm ceev tso dej

Dej thiab kwj dej dewatering

Qhov tob thiab underground qhov chaw tshem tawm dej

Kev tsim kho qhov chaw dewatering

Kev khiav dej num thaum muaj xwm txheej ceev

Agricultural irrigation thiab kev txhawb nqa dej

FAQ

Q1:Qhov dej tsawg kawg nkaus uas yuav tsum tau ua rau lub twj tso kua mis no ua haujlwm tau zoo?

A: Peb lub twj tso kua mis hydraulic axial ntws tuaj yeem ua haujlwm ntawm qhov tsawg kawg nkaus submergence qhov tob ntawm 200mm, uas yog qhov tseem ceeb rau hauv nroog waterlogging scenarios qhov twg dej qhov tob feem ntau ntiav (feem ntau 300-500mm ntawm txoj kev). Cov twj tso kua mis centrifugal ib txwm xav tau tsawg kawg yog 500mm submergence thiab yuav cavitate hauv qhov dej ntiav.

Q2: Dab tsi hydraulic zog chav tsev (HPU) specifications kuv yuav tsum tau tsav lub twj tso kua mis?

A: Peb pom zoo kom muaj HPU nrog tus nqi ntws ntawm 40-100 Lpm thiab kev ua haujlwm siab ntawm 160-200 bar. Yog tias koj twb muaj HPU uas twb muaj lawm ntawm koj lub tsheb xwm txheej ceev, xa koj cov HPU specs rau peb thiab peb yuav txheeb xyuas qhov ua tau zoo. Rau cov neeg siv khoom tsis muaj HPU, peb muab cov pob khoom sib xws.

Q3: Lub twj tso kua mis sai npaum li cas los ntawm lub tsheb tuaj txog rau kev ua haujlwm tag nrho?

A: Ob tus neeg ua haujlwm tuaj yeem ua tiav kev sib txuas thiab xa tawm hauv 5-8 feeb. Lub twj tso kua mis hnyav kwv yees li 45kg, yuav tsum tsis muaj cov cuab yeej nqa, thiab siv ceev-tso hydraulic couplings.

Q4: Lub sijhawm tu ncua yog dab tsi thiab cov khoom siv li cas feem ntau?

A: Raws li kev ua haujlwm ib txwm muaj (cov dej huv lossis cov dej tsis qab), pom zoo saib xyuas txhua 500 teev ua haujlwm. Lub impeller thiab lub nplhaib hnav yog cov khoom siv tseem ceeb. Peb khaws cov khoom seem hauv Tshuag thiab tuaj yeem xa tuaj hauv 24 teev rau kev kho thaum muaj xwm txheej ceev.

Q5: Lub twj tso kua mis no puas tuaj yeem qhuav rau lub sijhawm luv?

A: Tsis yog. Lub tshuab hluav taws xob hydraulic tuaj yeem khiav tsis tu ncua, tab sis lub twj tso kua mis kawg xav tau dej rau lubrication thiab txias ntawm cov tshuab foob. Khiav qhuav rau ntau tshaj 30 vib nas this yuav ua rau lub foob puas. Peb suav nrog lub tshuab ziab khaub ncaws tiv thaiv ua ib qho kev xaiv ntxiv-on.

Vim li cas thiaj xaiv peb?

Peb muaj ntau xyoo ntawm kev R & D thiab kev tsim khoom hauv hydraulic axial flow pumps, nrog cov khoom lag luam paub tab thiab ruaj khov uas tau raug tshawb xyuas dav dav hauv kev tswj dej nyab, kev cawm thaum muaj xwm txheej ceev, kev ua liaj ua teb dej thiab dej, thiab lub hauv paus qhov dej dewatering tej yaam num.

Peb cov khoom muaj kev ua haujlwm siab, tus nqi ntws loj, siab lub taub hau, thiab muaj zog yoog raws, txhawb nqa ob qho tib si ruaj khov thiab mobile hydraulic. Lawv yooj yim rau kev khiav lag luam, tswj, thiab txhim khu kev qha hauv kev ua haujlwm nyuaj.

Peb muab cov kev daws teeb meem raws li koj qhov kev ua haujlwm, nrog rau kev sib tham ua ntej muag thiab kev pab cuam tom qab muag, ua kom muaj kev ruaj ntseg thiab kev siv tsis muaj kev txhawj xeeb thoob plaws hauv lub neej ntawm cov khoom.

Kev paub txog qhov project

1. Inner Mongolia Emergency Management Bureau – Municipal Flood Control Drainage (2025)

Scenario: Cov dej hauv nroog tom qab los nag hnyav, ntau txoj kev qis qis qis, cov twj tso kua dej tsis tuaj yeem khaws cia vim qhov dej tob tob

Kev daws: Siv 4 units ntawm peb hydraulic axial flow twj (500m³ / h txhua) nrog mobile HPU trailers

Qhov tshwm sim: 1.2km ntawm txoj kev dej nyab uas ntws hauv 6 teev, rov ua kom cov tsheb khiav rov qab. Pumps khiav tsis tu ncua rau 36 teev nrog xoom downtime

2. Jiangsu Municipal Drainage Authority - Underground Garage Tiv thaiv dej nyab (2024)

Scenario: 3 qhov chaw nres tsheb hauv av hauv khw hauv khw, dej qhov tob mus txog 1.8m tom qab cua daj cua dub, kho cov twj tso kua dej ua tsis tiav vim hluav taws xob poob

Kev daws: Ob lub hydraulic axial ntws twj uas tau tsav los ntawm diesel HPUs, xa tawm ntawm stairwell nkag

Qhov tshwm sim: Dej theem poob mus rau 0.3m hauv 4.5 teev. Txhua lub tsheb nres thiab hluav taws xob substation ntawm qib B1 tiv thaiv

3. Infrastructure Site – Foundation Pit Dewatering (2024)

Scenario: 8m sib sib zog nqus excavation site, hauv av ingress tshaj lub peev xwm ntawm hluav taws xob submersible twj, qhov chaw tsis muaj 3-theem fais fab mov

Kev daws: Hydraulic axial flow twj tso kua mis powered los ntawm ib tug diesel HPU, nrog saj zawg zog suction hose positioned ntawm lub qhov dej.

Qhov tshwm sim: Khaws cov dej hauv qab qhov chaw ua haujlwm rau tag nrho 3-hli lub hauv paus kev tsim kho theem
