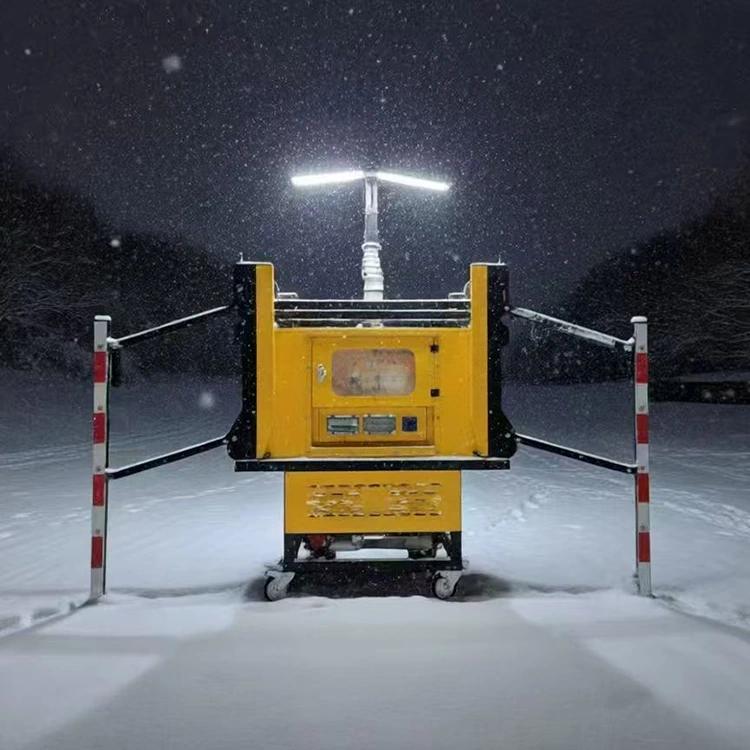

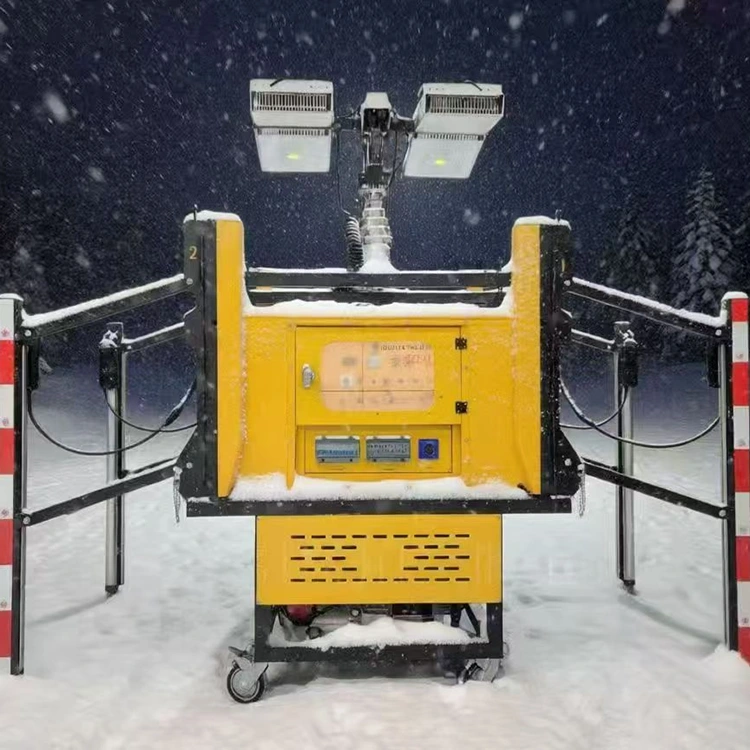

Automatic Loading and Unloading Mobile Lighting Tower

Tsis Siv Neeg Loading thiab Unloading Mobile Teeb pom kev zoo Ntauwd nta ib qho kev sib xyaw ua ke automated loading thiab unloading qauv, tshem tawm qhov xav tau ntawm cranes, forklifts, lossis lwm yam khoom siv. Nws tuaj yeem tsaws sai sai, nthuav tawm, quav, thiab khaws nws tus kheej siv nws tus kheej cov qauv xwb. Nws txoj kev thauj mus los yooj yim thiab kev xa mus rau qhov chaw ua haujlwm tau zoo txo ​​cov neeg ua haujlwm thiab lub sijhawm npaj.

Qhov Tseem Ceeb Zoo

Fast Self-Loading thiab Deployment

Built-in automatic loading thiab unloading system

Tsis muaj cov cuab yeej nqa sab nraud yuav tsum tau ua

Kev ua haujlwm ib leeg rau kev thauj thiab teeb tsa

Lub sijhawm xa tawm ≤ 180 vib nas this

High-Performance 360 ​​° Teeb pom kev zoo

4 × 1000W LED high-brightness teeb

360 ° adjustable teeb pom kev zoo

Illumination ntau txog 120 meters

Luminous flux ≥ 380,000 lm

ruaj khov, glare-txo lub teeb rau kev ua haujlwm hmo ntuj

Strong Outdoor Adaptability

IP67 waterproof teeb taub hau

Cua tiv taus mus txog qib 8

Dustproof thiab corrosion-resistant qauv

Ua haujlwm hauv nag, daus, xuab zeb, thiab kub heev

Lub sijhawm ua haujlwm ntev thiab hloov tau lub zog

Honda 4-stroke generator (5-5.5kW)

Lub sijhawm ua haujlwm tsis tu ncua mus txog 25 teev

Dual fais fab hom: generator lossis 220V mains mov

Smart Operation System

LCD tswj vaj huam sib luag + wireless chaw taws teeb tswj (≥120m)

Adjustable mast qhov siab txog li 7.3m

Kev nqa ceev: ≤50s nce / ≤35s nqis

Kev nyab xeeb thiab yooj yim ua haujlwm interface

Technical Parameters

1. Rated Voltage: AC 220V, 50Hz

2. Lub Taub Hau Lub Zog: 4 × 1000W LED lub teeb ci

3. Illuminance: Thaum lub taub hau teeb ntawm 90 ° rau hauv av,

lub illuminance yuav tsum ntau tshaj 6000 Lx ntawm 20 meters los ntawm lub teeb chaw,

ntau tshaj 1000Lx ntawm 50 meters,

thiab ntau tshaj 200 Lx ntawm 120 meters.

4. Lub zog hluav taws xob: 5 ~ 5.5kW

5. Lifting hom teeb pom kev zoo ntauwd: Pneumatic

6. Lifting Qhov siab: 7.3m

7. Lub taub hau tiv thaiv chav kawm: IP67

8. Pib hom: Pib pib + Hluav taws xob pib

9. Lub sijhawm ua haujlwm tsis tu ncua: 25 teev

10. Lub Sijhawm Lifting: Rising ≤ 50s / Lowering ≤ 35s

11. Lub Taub Hau Kev Kho Kom Zoo Ntau Yam: Vertical 0–135° / Kab rov tav 0–360°

12. Generator Teeb: Honda, 4-stroke, cua txias

13. Qhov chaw: 389CC

14. Roj noj: 1.7L/h; Roj Tank Peev Xwm: 45L

15. Generator tso zis Voltage: AC 220V, 50Hz

16. Tag nrho qhov hnyav: 600KG

7. Tag Nrho Qhov Loj:

Deployed: ≤ 2500 × 1500 × 7300mm

Cia: ≤ 1800 × 1400 × 2500mm

18. Guardrail Lub Teeb Lub Zog: 2 × 28W

19. Ntauwd Loading thiab Unloading Sijhawm: ≤ 180s

20. Teeb pom kev zoo Radius: 120m

21. Kev hloov ntawm lub taub hau teeb thiab kev nqa ntawm tus ncej tuaj yeem tswj tau ntawm LCD zaub thiab wireless chaw taws teeb tswj; chaw taws teeb tswj nrug ＞ 120m.

Kev ua haujlwm nta

1. Lub tsev tseem ceeb ntawm Tsis Siv Neeg Loading thiab Unloading Mobile Lighting Tower yog nruab nrog cov qauv xauv thiab ua tiav nrog cov hmoov txheej los tiv thaiv tag nrho cov khoom sab hauv. Lub tshuab ntse tswj module muab kev saib xyuas thiab kev tiv thaiv zoo rau lub cav, ua kom yooj yim txij nkawm txhua hnub. Plaub vertically foldable txav casters yog ntsia rau hauv qab kom hloov tau yooj yim.

2. Lub ntsiab teeb pom kev zoo txais 4 × 1000W LED lub teeb qhov chaw, xa cov ci ntsa iab thiab qhov kev pab cuam dav dav nrog kev sib npaug ntawm qhov ntev thiab luv luv. Lub teeb qhov kev pab cuam lub neej ntev tshaj 10,000 teev, ua rau nws zoo heev rau kev ua haujlwm sab nraum zoov teeb pom kev zoo.

3. Lub pej thuam yog haum nrog pneumatic lifting mast ua los ntawm 6063 txhuas alloy nrog nyuaj anodized nto kho rau zoo heev corrosion kuj, nrog ib tug siab tshaj lifting qhov siab ntawm 7.3 meters. Plaub lub taub hau lub taub hau txhawb hluav taws xob ntsug flipping ntawm 0 ° txog 135 ° thiab 360 ° kab rov tav hloov kho, ua tiav qhov kev pab cuam tag nrho nrog lub teeb pom kev zoo tsis pub tsawg dua 120 meters.

4. Powered los ntawm lub tshuab hluav taws xob teeb, chav tsev tuaj yeem ua haujlwm tsis tu ncua rau 25 teev ntawm lub tank roj puv. Nws tseem tuaj yeem txuas nrog 220V AC lub zog hluav taws xob rau lub teeb pom kev ntev uas muaj hluav taws xob hauv nroog.

5. Nruab nrog lub vaj huam sib luag pom kev ua haujlwm thiab kev tswj cov keyboards, cov cuab yeej ua haujlwm yooj yim, nyab xeeb thiab txhim khu kev qha.

6. Nrog ib tug compact zuag qhia tag nrho cov qauv thiab ruaj khov kev ua tau zoo, tus pej thuam yog txawm peem rau nrog plaub rov qab hluav taws xob laub qws txhawb ob txhais ceg, enabling lub ntsiab unit yuav integrally lifted los ntawm ntau tshaj 1000 hli. Nws muab kev txhawb nqa ruaj khov thiab sib npaug ntawm qhov chaw tsim kho tsis sib xws, ua haujlwm ib txwm nyob rau hauv ib puag ncig hnyav thiab huab cua, thiab mus txog qib 8 cua tiv thaiv.

7. Cov qauv tsim kho kom zoo ua kom yooj yim txav thiab thauj mus los. Nws txhawb nqa hluav taws xob tus kheej-loading thiab unloading mus rau lub tsheb thauj khoom cargo txaj, xav txog lub tswv yim tsim humanized.

8. Tag nrho cov luminous flux ntawm lub teeb taub hau: ≥380,000 lm; Lub suab nrov: nyob rau hauv ib txwm ua haujlwm, lub suab nrov ntawm kev khiav hauj lwm ntsuas ntawm 7 meters ib ncig ntawm lub cav tsis ntau tshaj 62 dB.

9. Ib txheej ntawm 2 × 28W guardrail teeb tau teeb tsa nyob ib ncig ntawm lub tsev tseem ceeb, muaj cov dej tsis zoo thiab tsis muaj plua plav.

Scope ntawm daim ntawv thov

Qhov Tsis Siv Neeg Loading thiab Unloading Mobile Lighting Tower yog tsim rau ntau qhov xwm txheej thiab ua tau raws li qhov xav tau ntawm thaj chaw loj, teeb pom kev zoo hauv ntau qhov chaw. Nws muaj feem xyuam rau ntau yam kev tsim kho loj, kev ua haujlwm mining, kev tshawb nrhiav thiab kev nthuav dav hauv lub Hoobkas, muab cov teeb pom kev txaus rau kev ua haujlwm dav dav thaum hmo ntuj lossis hauv cov teeb pom kev zoo kom ntseeg tau tias kev tsim kho thiab kev nyab xeeb ntawm kev ua haujlwm.

Lub caij no, nws yog ib qho tseem ceeb ntawm cov khoom siv teeb pom kev zoo rau kev pab cawm thaum muaj xwm txheej ceev. Nws yog dav siv nyob rau hauv kev saib xyuas thiab kho thaum muaj xwm ceev ntawm lub hwj chim, kev sib txuas lus thiab txoj kev chaw, nyob rau ntawm qhov chaw tuav ntawm cov xwm txheej ceev, kev tiv thaiv dej nyab thiab kev sib ntaus sib tua dej nyab, nrog rau kev nyab xeeb thiab kev pab cuam. Nws xa cov teeb pom kev kub ntxhov hauv cheeb tsam ruaj khov los txhawb pab pawg xwm txheej ceev hauv kev ua haujlwm cawm thiab tuav cov xwm txheej zoo.
